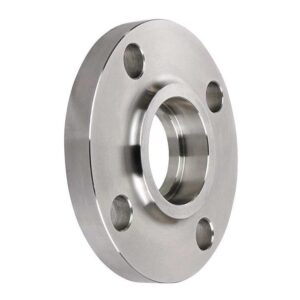

Socket Weld Flange

Socket Weld Flanges (SWRF) are counter-bored, ensuring the bore of the flange and pipe are the same, promoting a smooth flow of the product through the pipe. Initially used for small-sized high-pressure pipes, they are now used in high-pressure systems as well. Our Stainless Steel Socket Weld Flanges offer oxidation resistance and better weldability and fabricability. They are ideal for industries like LNG, seawater, and mining due to their excellent stress corrosion cracking resistance

Description

Dimension Standard

ANSI B16.5, MSS SP44, Custom Drawings

Size Range

1/2″ (15 NB) to **3″ (80 NB)** (**Limited size range**)

Pressure Classes

150, 300, 600 LBS (**Not recommended for higher classes**)

DIN Standards

DIN2527, DIN2642, DIN2635, DIN2638, DIN2673, etc.

BS Standards

BS4504, PN6, PN10, PN16, PN25, PN40, etc.

API Standards

PSI-2000/3000/5000/10000, etc.

JIS Standards

2220-2004 5k/10k/16k, etc.

Flange Face Types

FF (Flat Face), RF (Raised Face), RTJ (Ring Type Joint)
